End-to-end thin-gauge metal fabrication: turret-punch blanking, precision press-brake forming, and press-fit hardware insertion supported by CAD/CAM nesting and bend simulation. Handles prototypes through production with controlled edge finishing and inspection. Typical work includes brackets, enclosures, and chassis with tight hole location, repeatable bends, and installation-ready fasteners.

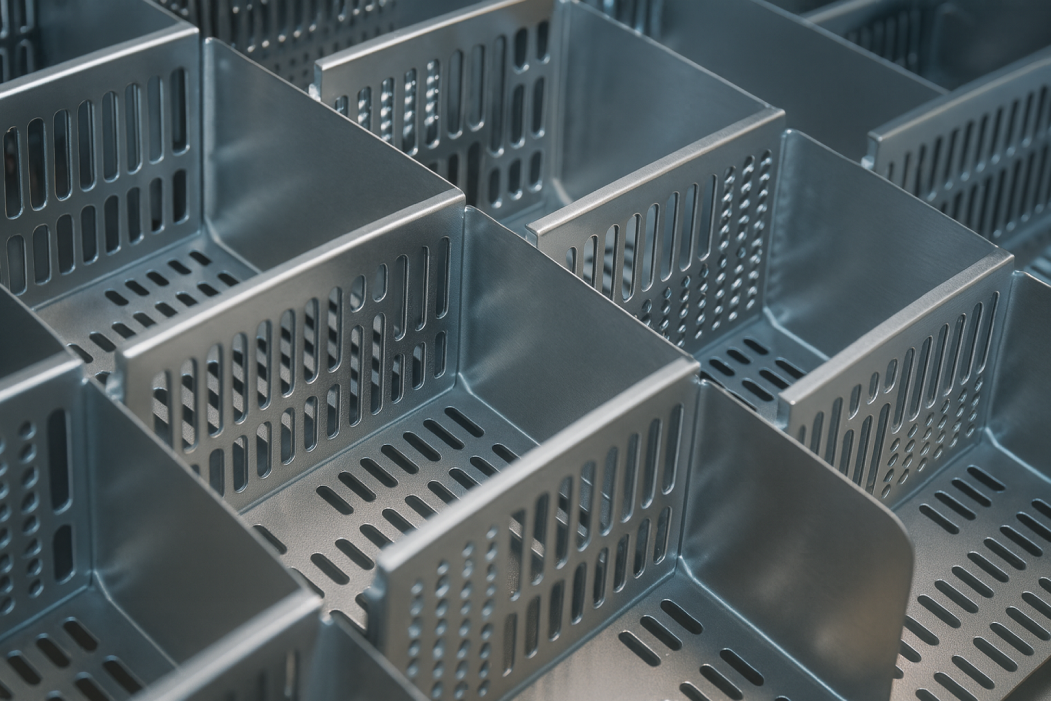

Custom perforated sheet metal enclosures manufactured for industrial applications

Sheet-Metal Fabrication transforms thin-gauge metals—typically 0.004 – 0.250 in (0.1 – 6 mm) carbon steel, stainless steel, and aluminum—into finished brackets, enclosures, chassis, and architectural panels. A typical workflow includes CNC laser or turret-punch blanking, press-brake forming, hardware insertion, resistance or MIG/TIG welding, and final deburr/finish, all supported by CAD/CAM nesting and bend-simulation for high material utilization and bend accuracy.

Sheet-Metal Fabrication

Supports high volume production demands, ensuring scalability and competitive cost for large-scale orders.

Meets the needs of medium volume production, offering cost efficiency for expanding product lines.

Designed for prototyping and small batch runs, allowing for rapid iteration and testing.

Optimized for low volume production, ideal for market introduction and specialized products.

CNC turret punching uses a rotating tool carousel and programmable X-Y sheet positioning to nibble, lance, form, or fully punch shapes in sheet metal up to 0.250 in thick. Ideal for medium-volume parts requiring multiple hole sizes, louvers, or emboss features without dedicated hard tooling.

Turret Punching

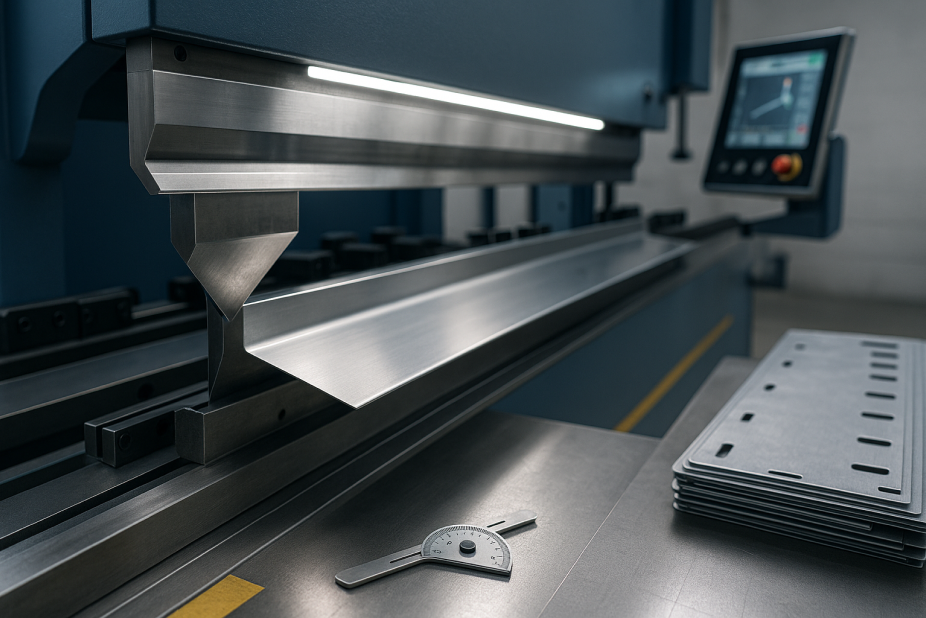

Press Brake Forming uses a press brake machine to bend and form sheets of metal with high precision, making it essential for detailed metalworking applications.

Press Brake Forming

Mechanically installs self-clinching nuts, studs, standoffs, and panel fasteners into ductile sheet-metal using tonnage-controlled presses. Knurled or under-cut features cold-flow the parent material to lock the fastener flush without secondary welding or tapping.

Press-Fit Hardware Insertion (Self-Clinching Fasteners)

Precision Sheet Metal Fabrication

In-house MIG, TIG, and resistance spot welding for thin- to moderate-gauge steel, stainless, and aluminum, supported by fixturing, post-weld dressing, and light mechanical assembly/kitting. Typical work includes sheet-metal enclosures, brackets, and frames with cosmetic TIG seams or production-rate MIG.

Welding & Joining encompasses thermal-fusion and solid-state techniques that permanently unite metal (and some plastic) components. Processes include arc welding (MIG/GMAW, TIG/GTAW, Stick/SMAW, FCAW), resistance welding (spot, seam, projection), high-energy beam welding (laser, electron-beam), solid-state options (friction-stir, explosion, diffusion), and low-temperature joining such as brazing and soldering. Proper joint design, filler-metal selection, heat input control, and post-weld inspection are critical to achieving the required mechanical and metallurgical properties.

Welding & Joining

Gas-metal-arc welding using solid or metal-cored wire with inert/active shielding gas. Offers high deposition rate and ease of automation for steel, stainless and aluminium fabrication.

MIG (GMAW) Welding

Gas-tungsten-arc welding employing a non-consumable tungsten electrode for precision, low-spatter welds on thin or critical materials including stainless steel, aluminium and titanium.

TIG (GTAW) Welding

Spot Welding fuses overlapping metal surfaces via resistive heat from an electric current, frequently used in automotive assembly.

Spot Welding

Assembly & Integration Services encompasses mechanical fastening, ultrasonic welding, heat staking, electronics and hardware integration, sub-assembly kitting, and packaging services to deliver complete assemblies or kits ready for immediate installation or shipment.

Assembly & Integration Services

Welding & Assembly

Mechanical edge finishing and cosmetic graining paired with documented inspection. Includes a trusted vendor network for plating, painting, powder coating, and screening. Verify critical dimensions with FAI reports when requested.

Inspection & Quality Control (IQC) comprises the metrology, verification, and documentation activities that ensure parts conform to drawing/CAD requirements, customer specifications, and regulatory standards. IQC spans incoming, in-process, and final inspection and leverages coordinate metrology (CMMs and portable arms), laser/structured-light scanning, optical comparators and vision systems, surface-form metrology (profilometers, roundness/contour testers), nondestructive testing (NDT), and statistical process control (SPC). Results are captured in traceable reports (e.g., AS9102 FAIR, PPAP) tied to calibrated gauges and controlled environmental conditions.

Inspection & Quality Control

Deburring is a critical post-processing operation that removes sharp edges and burrs from metal parts resulting from machining operations. It is essential for ensuring part functionality, safety during handling, and preparing surfaces for further finishing processes. Deburring can be performed using manual techniques, mechanical methods, or through thermal energy, and is applicable across a wide range of industries where smoothness of the part surface is required.

Deburring

Graining produces a uniform, directional surface finish on sheet-metal parts using wide-belt or brush-based abrasive equipment. It is typically specified as a #3 or #4 finish on stainless steel or aluminum and provides cosmetic appeal, consistent reflectivity, and improved paint/powder-coat adhesion. Graining is often performed alongside deburring in conveyorized systems (e.g., Timesaver machines) and is common in appliance, architectural, and precision sheet-metal applications.

Graining

Surface Roughness Measurement quantifies micro-deviations from an ideally smooth surface using parameters like Ra. It’s key for functional and aesthetic requirements in automotive, aerospace, and medical applications.

Surface Roughness Measurement

Dimensional Inspection verifies that a part’s physical dimensions match design tolerances. Tools include calipers, micrometers, and CMMs, ensuring geometric accuracy of length, width, height, angles, and more.

Dimensional Inspection

AS9102 Rev D first-article inspection with ballooned drawings and FAIR Forms 1-3 for aerospace qualification of new-production parts.

First Article Inspection (AS9102)

Inspection Reporting documents measurement, tests, and observations, ensuring parts meet specified tolerances. Critical for traceability and compliance in regulated industries (aerospace, automotive, medical).

Inspection Reporting

Finishing & Quality

Practical DFM/DFA assistance and CAD/CAM support for sheet-metal parts and assemblies. Services include flat-pattern generation, nesting and NC programming, and iterative prototype updates. Deliverables align to customer CAD with revision control to reduce rework and accelerate release to production.

End-to-end engineering and design services including CAD/CAE modeling, finite-element analysis, tolerance stack-up, DFM/DFA feedback and fixture design. Teams leverage multi-CAD platforms and PLM integration to deliver manufacturable product designs optimized for cost, performance and assembly.

Engineering & Design Services

Engineering service that creates optimized CNC turret-punch or laser programs, including nesting, tool sequencing, and simulation, to maximize material utilization and minimize cycle time.

CAD/CAM Pattern Programming

Rapid, multidisciplinary build of functional prototypes that bridge industrial design and engineering validation. Combines additive manufacturing, CNC machining, soft tooling, electronics integration, and functional testing in tight sprint cycles to prove form-fit-function and gather user feedback before production tooling.

Prototype Development (Concept-to-Function)

Design & Engineering Support

The design, manufacturing, and integration of high‐precision components, systems, and subsystems for commercial aircraft and military platforms, with emphasis on meeting stringent certifications such as AS9100, ITAR, and MIL‐STD. Priorities include advanced materials, rigorous quality assurance, and robust engineering to ensure reliability in mission‐critical applications.

Aerospace & Defense

Fabricates non-flight-critical aerospace sheet-metal brackets, panels, and light enclosures with documented inspection and traceable lots; suitable for ground support and ancillary equipment where AS9100 is not mandated.

The design, manufacturing, and assembly of components and systems for passenger cars, commercial and off-highway vehicles, rail rolling stock, and emerging electric/Autonomous mobility platforms. High-volume production, IATF 16949 compliance, JIT supply chains, and continuous innovation ensure reliable powertrains, safety-critical systems, and cost-efficient delivery across a broad transportation landscape.

Automotive & Transportation

Builds formed and welded sheet-metal components for automotive/transport equipment (e.g., brackets, guards, light enclosures) with repeatable fixtures and documented first-article inspection when requested.

Focuses on the fabrication and assembly of lighting fixtures, reflectors, and supporting metal components for commercial, industrial, and architectural lighting applications. Emphasizes energy efficiency, design customization, and compliance with relevant electrical standards (UL, IEC).

Commercial Lighting

Structural steel, prefabricated assemblies, HVAC modules, and envelope systems supplied to residential, commercial, and infrastructure projects. ASTM / ICC code compliance and BIM-ready data enable efficient, high-quality building delivery.

Construction Products & Building Materials

Fabricates sheet-metal housings, backplates, brackets, and driver trays for LED luminaires and fixtures with cosmetic grain and coating-ready prep.

Engineering, integration, and production of articulated, SCARA, delta, and gantry robots—plus end-of-arm tooling and safety controls—for automated welding, assembly, pick-and-place, and inspection tasks. Compliance with ISO 10218 and ANSI/RIA R15.06 ensures safe, high-throughput operation across diverse manufacturing environments.

Industrial Robotics & Automation Systems

The design and production of large‐scale machinery, automation systems, and heavy equipment for industrial applications, where reliability and performance are paramount. Adherence to ISO, ANSI, and other applicable standards supports continuous operation under high‐stress conditions, with custom‐engineered systems often required.

Industrial Machinery & Heavy Equipment

Builds enclosures, mounting panels, and brackets for sensors, actuators, and control cabinets used in industrial robotics and automation.

Eagle Precision Fabricators, Inc. specializes in high-precision sheet metal fabrication and welding services for diverse industrial applications. Equipped with advanced CNC machinery and an experienced welding team, the company delivers custom metal components with stringent quality controls including bend and weld inspections. Serving aerospace, automotive, and electronics industries, their comprehensive capabilities include tooling setup, precision bending, welding assembly, and rigorous inspection processes, supported by a skilled workforce and modern facilities.

A 12,000 sq ft manufacturing facility housing CNC turret punching, press-brake forming, hardware insertion, spot/MIG/TIG welding, and in-house deburr/graining; located near major Chicago-area highways for efficient logistics.

Eagle Precision Headquarters

Precision sheet metal fabrication and welding services.

Eagle Precision Fabricators, Inc

Precision Sheet Metal Fabrication and Welding
